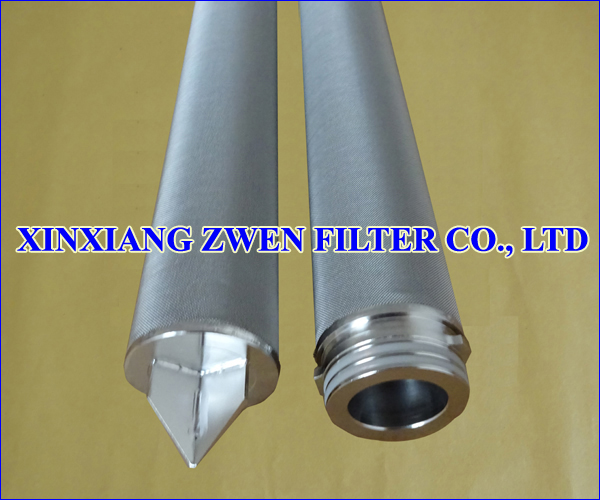

Sintered Fiber Felt Filter
Sintered Fiber Felt Filter Technical Parameter
Raw Material: SS 316L
Filter Rating Range: 1 Micron ~ 300 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
8. Special customization
Sintered Fiber Felt Filter Feature
1. Sintered fiber felt filter is depth filtration
2. Sintered fiber felt filter has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt
3. Sintered fiber felt filter has a very high filter efficiency because of different fiber layers density gradients of zwen sintered fiber felt
4. Stainless steel fiber will not shed in the filtration process
5. High porosity
6. High filter rating accuracy
7. High temperature resistance
8. High corrosion resistance
9. Pressure rise rate is slow in the filtration process
10. Pressure loss is low in the filtration process
11. High flow rate at low differential pressure
12. Washable and Cleanable
14. Long service life
Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
XINXIANG ZWEN FILTER CO.,LTD produces sintered filter, sintered fiber felt filter, sintered metal filter, sintered porous filter, sintered powder filter, sintered wire mesh filter, sintered filter cartridge, sintered filter disc, sintered filter element, sintered filter pipe, sintered filter plate, sintered filter rod, sintered filter sheet, and sintered filter tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENTS, MAHLE.
