Sintered Fiber Felt

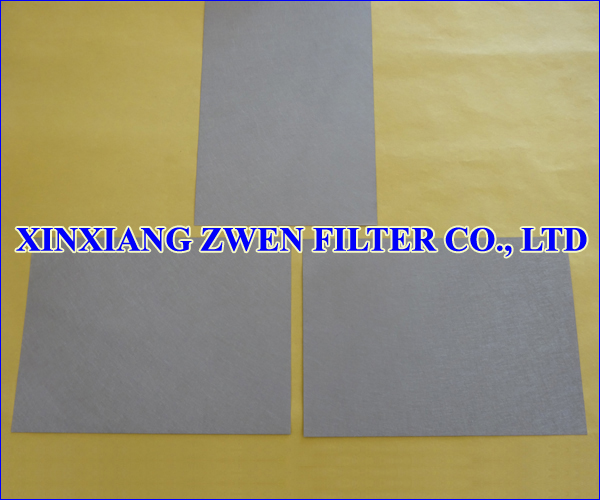

316L Sintered Fiber Felt

316L Sintered Fiber Felt

316L Sintered Fiber Felt Feature

1. 316L sintered fiber felt is made from different diameters stainless steel fibers

2. 316L sintered fiber felt is sintered in a high temperature vacuum furnace

3. 316L sintered fiber felt is a good filter media for depth filtration

4. 316L sintered fiber felt has high dirt holding capacity because of three dimensional fiber structures

5. 316L sintered fiber felt has a very high filter efficiency because of differential fiber layers density gradients

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in filtration process

11. Pressure loss is low in filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life

16. Easy to be pleated

17. Easy to be welded, fabricated

18. Easy to be cutted into different shapes, such as circular, sheet



316L Sintered Fiber Felt Technical Parameter

Raw Material: SS 316L

Filter Rating: 1-300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Length:  1200 mm

Width:  1000 mm

Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm or others

Special Size: 1500 mm*900 mm

Thickness: 0.2-10 mm

Number of Layers:

1. One layer (Sintered Fiber Felt)

2. Two layers (One Side Protective Wire Mesh/Sintered Fiber Felt)

3. Two layers (One Side Protective Wire Mesh/Sintered Fiber Felt/One Side Protective Wire Mesh)



Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces pleated metal filter cartridge (pleated wire mesh filter cartridge, pleated sintered fiber felt filter cartridge), sintered metal filter basket, sintered metal filter cartridge (sintered fiber felt filter cartridge, sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter sheet (sintered fiber felt, sintered mesh, sintered powder filter sheet), sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).



With high-end sintering equipment, welding equipment and skilled workers, we have passed ISO 9001:2008 quality management system and SGS audit test.



Our products are used in petroleum industry, chemical industry, aerospace industry, pharmaceutical industry, food industry, beverage industry.



Our main markets are European market and North American market.
